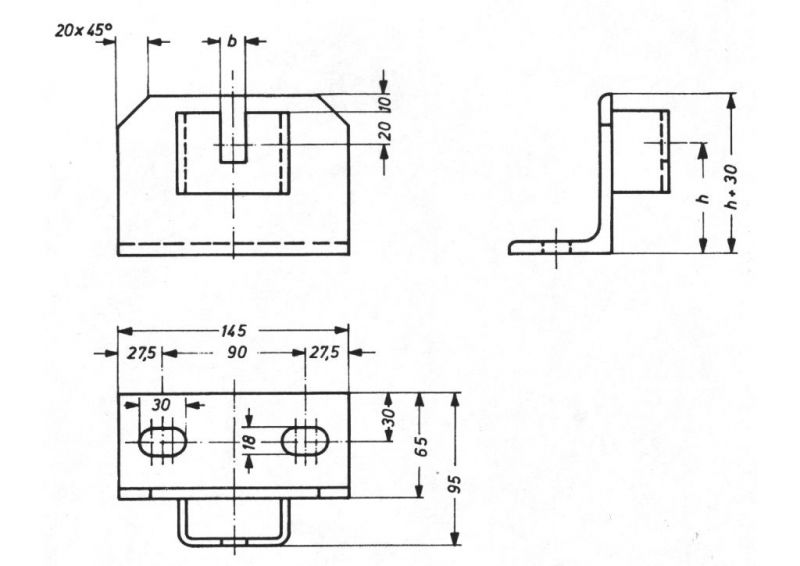

Technical drawing: Flat belt station for conveyor systems
CONVEYOR IDLER FRAMES
Flat Carry Bracket
As the name suggests, Flat Carry Brackets are used where only flat conveying sections are needed, usually with just one roller per frame. This can occur in both the unit load sector and the bulk material sector.
The standard version is designed for Conveyor Rollers with Flats (SW) 15.
Technical Specifications of our Flat Carry Brackets
further terms
Conveyor roller brackets, conveyor roller brackets, roller brackets, mounting brackets, conveyor roller mounting brackets, conveyor roller mounting brackets, roller mounting brackets, insert frames, insert brackets, conveyor roller supports, roller supports
Frequently Ordered Together:
Flat shaft end: Conveyor roller type 15207
Conveyor idlers with rubber rings (impact & return rollers)
Two return pulleys on a wooden pallet ready for shipping
Key Benefits
- Ideal for flat conveying sections
- Standard version for Conveyor Rollers with Flats (SW) 15
- Long service life
