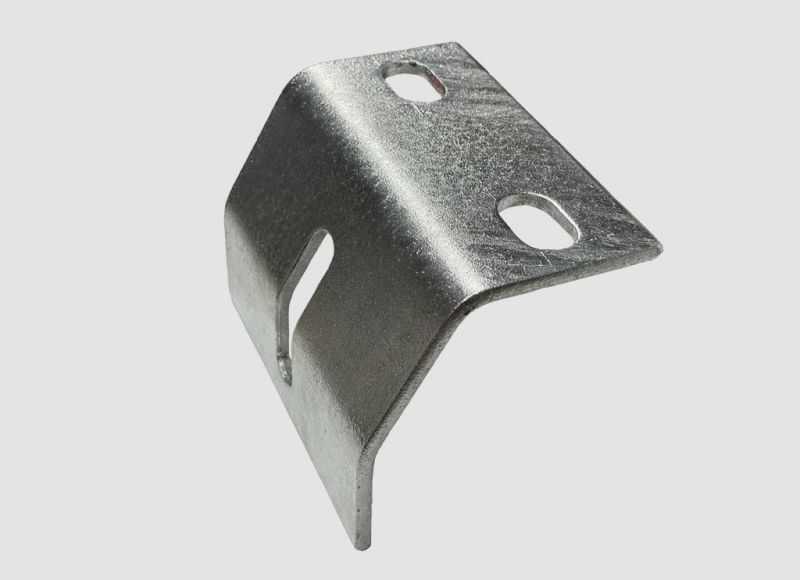

Lower belt station (conveyor roller bracket)
CONVEYOR IDLER FRAMES
Return Carry Brackets
For the lower strand, Return Carry Brackets or roller brackets are generally used.
Technical Specifications of our Return Carry Brackets
The standard version is designed for Conveyor Rollers with Flats (SW) 15.
In most cases, Return Carry Brackets / roller brackets are used in hot-dip galvanised finish. Dimensions may well deviate from those shown in the drawing.

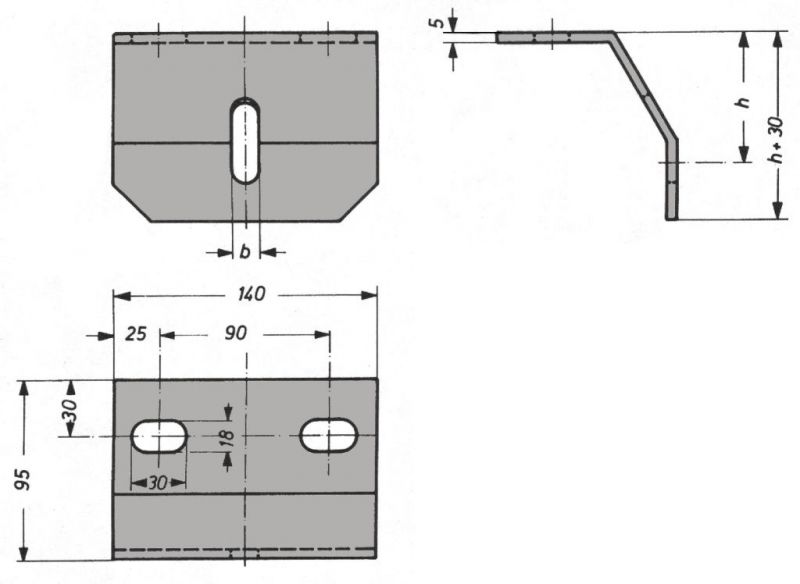

Technical drawing: Lower belt station (return roller bracket)
further terms
Conveyor roller brackets, conveyor roller brackets, roller brackets, mounting brackets, conveyor roller mounting brackets, conveyor roller mounting brackets, roller mounting brackets, insert frames, insert brackets, conveyor roller supports, roller supports
Frequently Ordered Together:
Flat shaft end: Conveyor roller type 15207
Side guide roller for conveyor belt tracking
Two return pulleys on a wooden pallet ready for shipping
Key Benefits
- For the lower strand
- Easy installation
- Long service life
