Spring-suspended garland idler station for conveyor technology
CONVEYOR ROLLERS
Varitrough Idler Sets for Conveyor Equipment

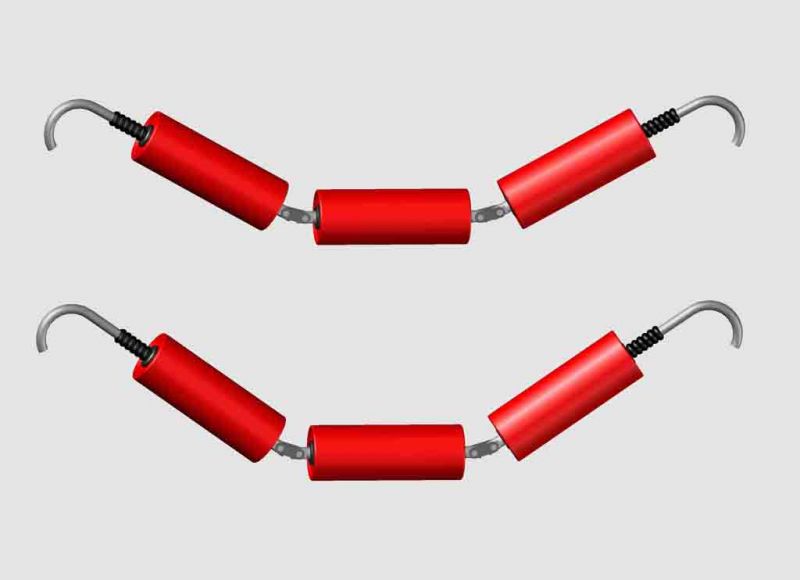

Varitrough Idler Sets use 3 Conveyor Rollers Type 15207 (Standard Rollers), which are connected to one another by chain links. As the name suggests, the special feature of Varitrough Idler Sets is the spring-loaded suspension.
Technical Specifications of our Varitrough Idler Sets
This spring-loaded suspension causes the Troughing Angle to adjust to the belt load. On the one hand, this means that the Troughing Angle increases as the load increases, but on the other hand, the belt still maintains contact with the Varitrough Idler Set even when unloaded. Overall, this also achieves good belt centring.
For an inquiry, simply use our Questionnaires. Fill in, submit, done! We will take care of the rest for you.
FURTHER IMPRESSIONS
Our Quality in Pictures

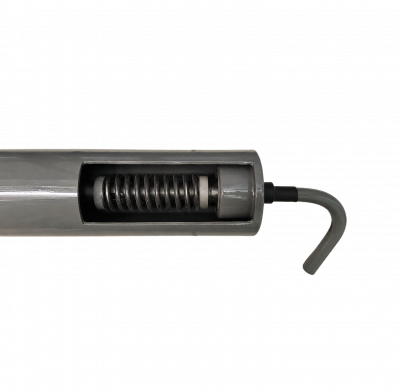

Cross-section view of a spring-suspended garland roller

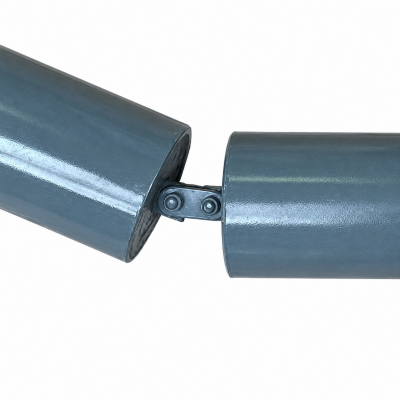

Close-up of garland roller chain links

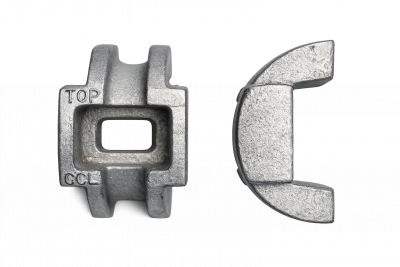

Mounting bracket for spring garland idlers

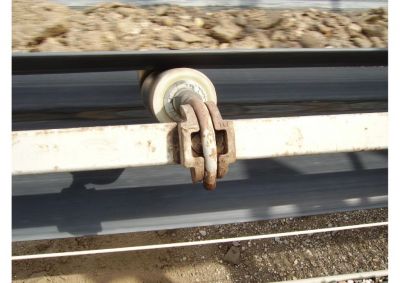

Spring-loaded suspension of a garland roller

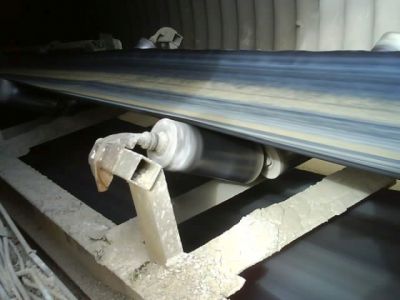

Spring-suspended garland rollers in operation

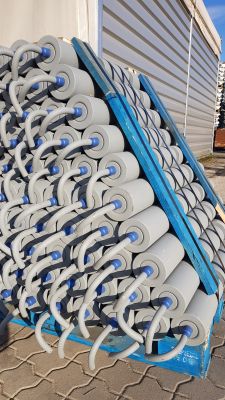

Palletized spring garland idlers ready for delivery

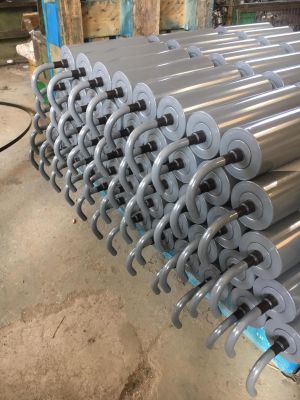

Stacked spring garland roller assemblies
further terms
Garland Idlers, Varitrough Idler Sets, Flexible Idlers, Limberoller, steel garlands
Frequently Ordered Together:
Flat shaft end: Conveyor roller type 15207
Side guide roller for conveyor belt tracking
Two return pulleys on a wooden pallet ready for shipping
Key Benefits
- 3 Conveyor Rollers Type 15207
- Spring-loaded suspension
- Adjustment of the Troughing Angle
- Connected via special chain links
