Conveyor belt cleaning brush roller
CONVEYOR ROLLERS

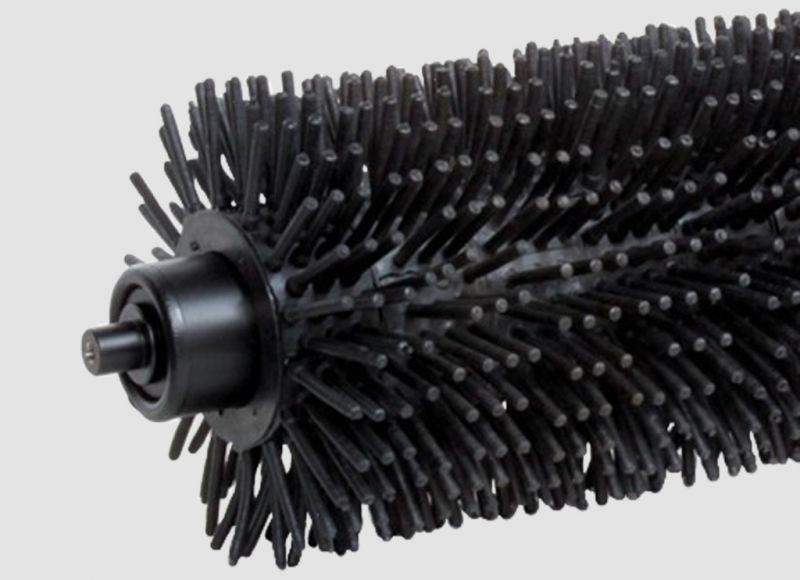

Brush Rollers for Industrial Cleaning
Brush Rollers consist of individual Rubber Brush Rings, which are mounted on a Conveyor Roller and secured at both ends. Their low-wear rubber bristles clean the belt through the rotating motion. Brush Rollers are found not only on smooth belts but also on belts with a profiled surface or cleated belts. Brush Rollers can therefore be used for any type of industrial cleaning.
Technical Specifications of our Brush Roller
The Conveyor Rollers are based on standard Conveyor Rollers Type 15207 and are fitted with Rubber Brush Rings. This results in the following diameters:
| Conveyor Roller-Ø D1 [mm] | Outer-Ø D2 [mm] |
Width of the Rubber Brush Rings [mm] |
| 63,5 | 192 | 50 |
| 76,0 | 192 | 50 |
In combination with a drive, further application possibilities arise for Brush Rollers.
Nutzen Sie für eine Anfrage einfach unsere Fragebögen. Ausfüllen, Abschicken, Fertig! Den Rest übernehmen wir für Sie.
FURTHER IMPRESSIONS
Our Quality in Pictures

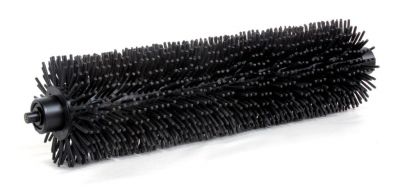

Complete conveyor belt cleaning brush idler assembly

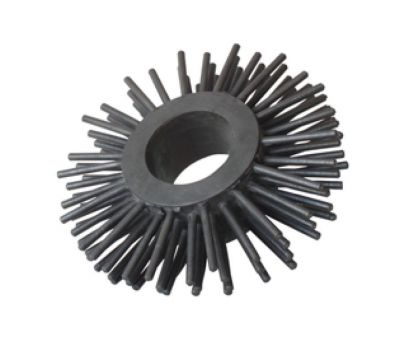

Replacement brush ring segment for conveyor rollers
further terms
Cleaning rollers, cleaning brushes
Frequently Ordered Together:
Flat shaft end: Conveyor roller type 15207
Lower belt station (conveyor roller bracket)
Two return pulleys on a wooden pallet ready for shipping
Key Benefits
- Low-wear rubber bristles
- Belt-cleaning
- Also suitable for cleated belts
