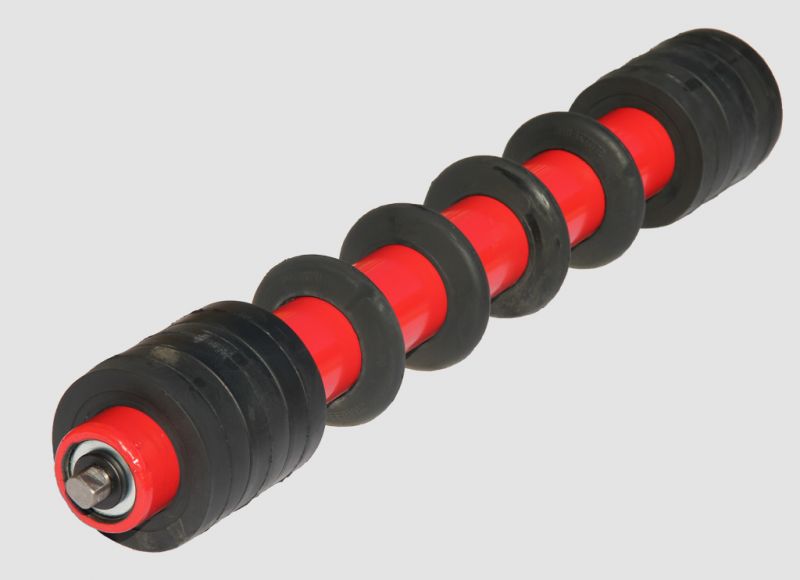

Conveyor roller equipped with rubber discs for impact absorption at loading points or belt cleaning on the return side

CONVEYOR ROLLERS

Rubber Disc Return Rollers

Rubber Disc Return Rollers are used in both the upper strand / upper belt as well as the lower strand / lower belt.

Product Data Sheet – Rubber Disc Return Rollers with Impact Rings

Product Data Sheet – Return Rollers with Support Rings

Use in the upper strand is as an Impact Roller or Rubber Impact Ring roller. These Conveyor Rollers are used in the loading or transfer area. Here the Rubber Impact Rings serve as protection against falling conveyed material and therefore have excellent damping properties against blows and shocks. For detailed information on dimensions please refer to the Product Data Sheet – Rubber Disc Return Rollers with Impact Rings.

In the lower strand, both Rubber Support Rings as well as Rubber Impact Rings are used. In most cases a Conveyor Roller Type 15207 (Standard Roller) is fitted with Support Rings, which are intended to reduce material build-up on the conveyor belt. A further advantage of using Rubber Impact Rings, Rubber Support Rings or Support Rings is the reduced wear on the actual return roller. For standard dimensions of Conveyor Rollers with Support Rings please refer to the Product Data Sheet – Rubber Disc Return Rollers with Support Rings.

The fitting of Conveyor Rollers with rubber or PU rings can be carried out according to specification or individually according to your requirements. Any combination of the various rubber ring types is also possible here.

We are happy to advise you on this.

For an inquiry, simply use our Questionnaires. Fill in, submit, done! We will take care of the rest for you.

To the Questionnaires

FURTHER IMPRESSIONS

Our Quality in Pictures

Securely packaged conveyor idlers with rubber discs inside a box, ready for shipping and safe transit

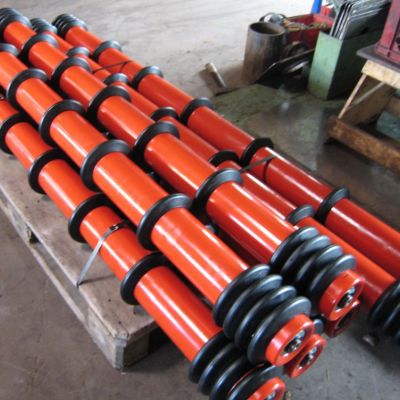

Conveyor idlers with rubber discs stacked on a pallet, secured and prepared for industrial logistics

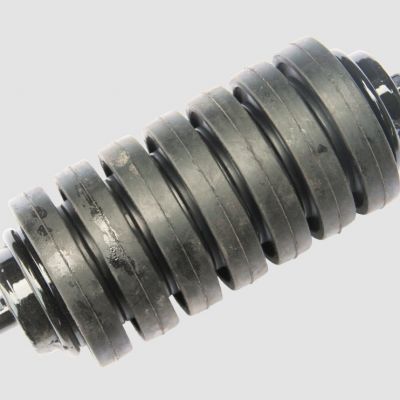

Heavy-duty impact idler equipped with rubber rings to absorb shock and protect the conveyor belt at loading points

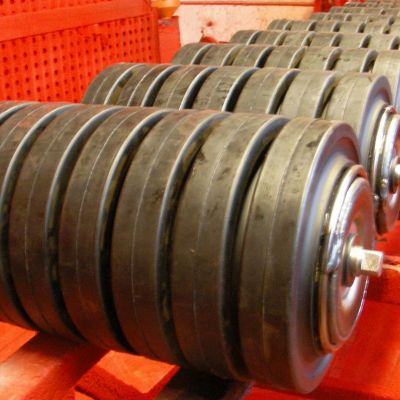

Shock-absorbing cushion idler with rubber discs designed to protect the conveyor belt under loading chutes

Close-up of a red standard conveyor roller type 15207 showing the machined shaft end and protective dust seal

Close-up view of the bearing and sealing system inside a conveyor roller type 15207

Side-by-side comparison of conveyor idler rings showing support ring Form A, impact disc, Form B ring, and a yellow polyurethane segment
