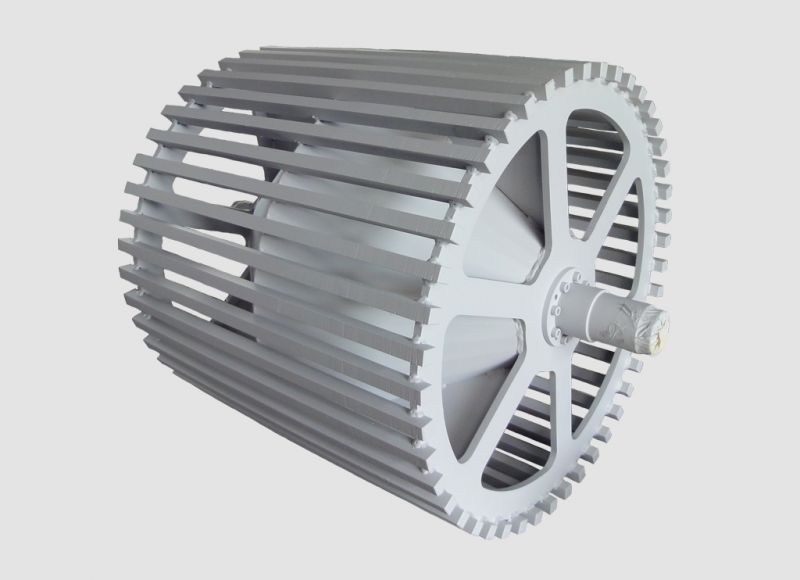

Self-cleaning slatted pulley (cage drum) with internal cone
Pulleys
Elevator Pulley (Lattice Pulley) to Measure
The Elevator Pulley, often also referred to as a Lattice Pulley, is used where contamination, build-up and material accumulation occur. It thus provides direct protection against damage to the conveyor belt.
Technical Specifications of our Elevator Pulleys
Unlike standard Tail Pulleys, these Pulleys have an open Pulley body. The material falls directly through the bars and is then guided outward via an internal cone.
The design of the Elevator Pulley is based on familiar parameters such as belt width, conveying capacity and conveying speed. We manufacture the Elevator Pulleys we supply according to your requirements and drawings.
Elevator Pulleys are supplied with either a welded shaft or a Locking Device connection.
Nutzen Sie für eine Anfrage nach Maß einfach unsere Fragebögen. Ausfüllen, Abschicken, Fertig! Den Rest übernehmen wir für Sie.
FURTHER IMPRESSIONS
Our Quality in Pictures

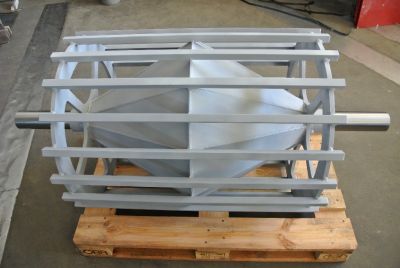

Full view of a slatted pulley (cage drum) on a pallet

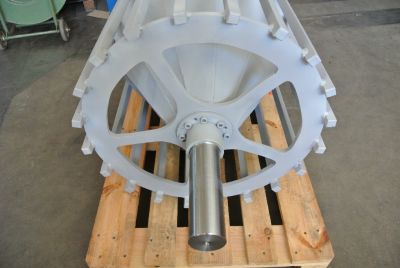

Front view of a slatted pulley (cage drum)

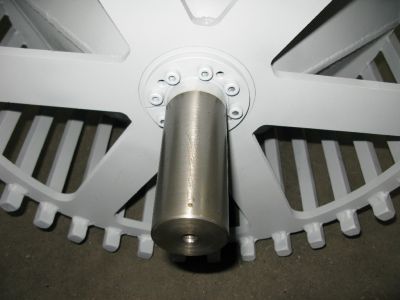

Detailed view of a slatted pulley shaft (cage drum axle)

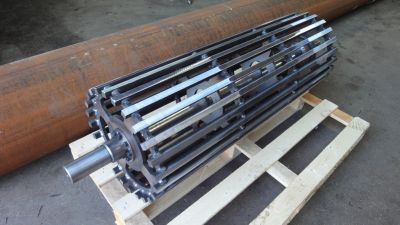

Elongated stainless steel slatted pulley without internal cone on a pallet
further terms
Bucket elevator Pulleys, stainless steel Pulleys, elevator Pulleys, flat steel Pulleys, conveyor belt Pulleys, Lattice Pulleys, knock-off Pulleys, cleaning Pulleys, round steel Pulleys, steel Pulleys, steep conveying Pulleys, reversing Pulleys, Tail Pulleys, deflection drums
Frequently Ordered Together:
Flat shaft end: Conveyor roller type 15207
Spohr upper belt station (3-part) for heavy-duty conveyors
Key Benefits
- Protection against contamination, build-up and material accumulation
- Open Pulley body & internal cone ensure targeted material flow
